Product overview

Turning vibrations into electricity in industrial environments

Small, big or customised?

The choice is yours!

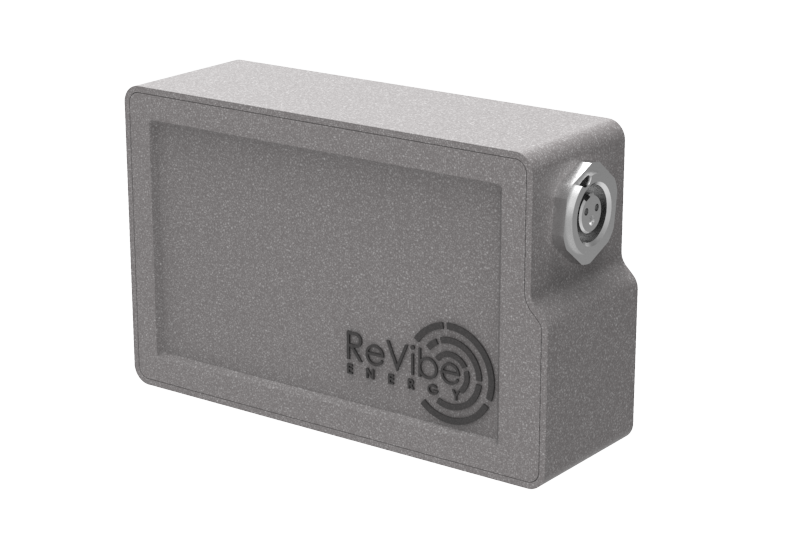

modelC

  • Factory tuning: 10 - 30 Hz
  • Acc. range: 0.05 - 10 g
  • Dimensions: 80 x 50 x 25 mm
  • Power: 0.5 - 150 mW

    Both AC & DC output available

modelD

  • Factory tuning: 30 - 150 Hz
  • Acc. range: 0.05 - 2 g
  • Dimensions: 63 x 33 mm
  • Power: 0.5 - 200 mW

    Both AC & DC output available

modelQ

  • Factory tuning: 30 - 100 Hz
  • Acc. range: 0.05 - 3 g
  • Dimensions: 25 x 28 mm
  • Power: 0.5 - 150 mW

    Both AC & DC output available

WL700

  • Factory tuning: 30 - 100 Hz
  • Acc. range: 0.05 - 3 g
  • Dimensions: 60 x 70 x 30 mm
  • Power: 0.5 - 300 mW

    Both AC & DC output available

Explore our
evaluation kits

Datasheet for all harvesting products

Looking for a customised harvester?

Environments where we perform at our best

Proves areas of use for ReVibes' products

self-powered monitoring systems

within mining and constructions

Productivity and efficiency are extremely important in the mining industry. As a result, the use of monitoring is highly sought after to ensure that machines and assets operate as intended to guarantee productivity. The harsh environment of the industry makes it suitable to introduce self-powered monitoring systems where the vibrations from the different machines & assets will provide the necessary power. At ReVibe, we are experts in designing custom monitoring systems for your specific purposes and machines. Follow the link below to learn more on how to proceed.

Industrial Monitoring System, VibScreen Connect, vibrating screens
Industrial Monitoring System, VibScreen Connect, vibrating screens

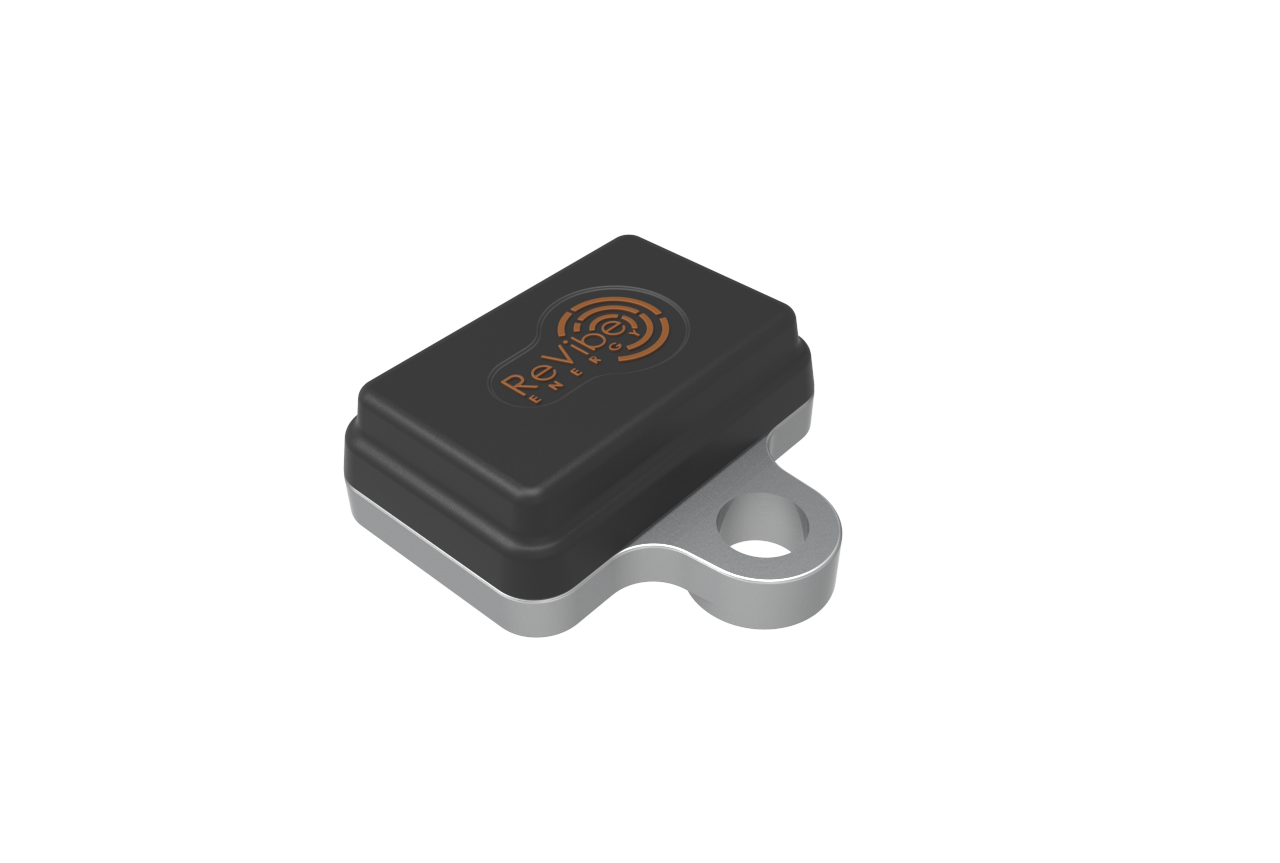

Self-powered monitoring systems

within rolling stock

Monitoring systems has during the last decade become increasingly important within the railway industry as the demands for profitability and efficiency increase. Designing such monitoring systems is not a simple task as the environment on the outside of the train is extremely harsh and hostile. By using our experience within monitoring and vibration energy harvesting, ReVibe designs a self-powered monitoring systems that increase efficiency. Follow the link below to learn more on how to proceed.
