SB1 Sensor Bridge
Industrial sensor bridge with Modbus TCP/IP interface for seamless SCADA/HMI integration.
Effortless SCADA & PLC Integration
-
Effortless SCADA & PLC Integration
Seamless Modbus TCP communication with SCADA, HMI, and process control systems. -
Precision Time-Synchronized Data
Delivers edge-processed vibration insights with sub-5µs synchronization from up to 8 connected sensors simultaneously
-
Industrial-Grade Reliability
Rugged IP65-rated aluminum and PA6 housing, built for harsh environments. -
Stable & Secure Ethernet Connectivity
Wired RJ45 connection ensures robust, low-latency data transmission.
Product description

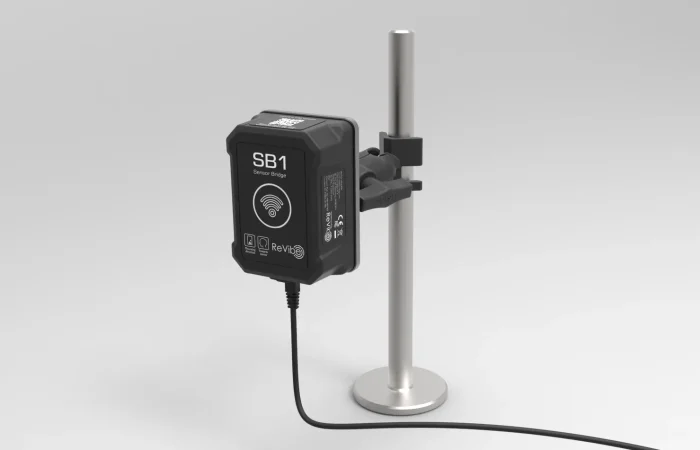

The SB1 Sensor Bridge seamlessly connects Anura vibration sensors with SCADA, HMI, or process monitoring systems, enabling effortless communication through Modbus TCP.

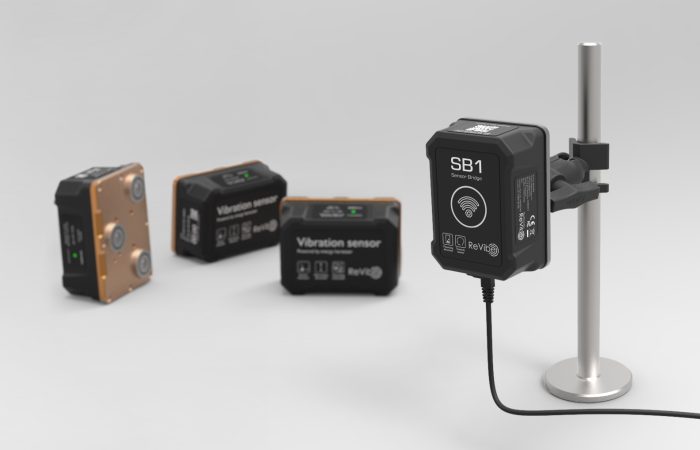

Unlike traditional data loggers, the SB1 transmits edge-processed vibration insights – such as velocity, displacement, and spectral data – directly to industrial control systems in real time. It supports up to 8 Anura sensors (VS1 & VS10-C), ensuring continuous, time-synchronized data transmission with sub-5µs precision across all connected sensors.
Built for harsh industrial environments, it features a rugged IP65-rated aluminum and PA6 enclosure and operates reliably in temperatures from -40°C to +80°C. Its ruggedized Neutrik RJ45 Ethernet interface ensures a stable, low-latency connection for real-time condition monitoring.
Designed for seamless SCADA integration, the SB1 simplifies vibration monitoring, providing actionable insights for predictive maintenance and process optimization.
Technical specification
Power Supply
PoE, IEEE 802af
Connections
Up to 8 sensors
Interface
Neutrik RJ45 Ethernet
Time Synch Offset
<5µs
Enclosure Material
Hard-anodized aluminum, PA6
Ingress Protection
IP65
Dimensions (HxWxD)
140 x 98 x 60 mm
Operating Temperature
-40 °C to +80 °C
Wireless Communication
2.4 GHz
Get started today
Want to take your monitoring to the next level? Get to know the VS1 sensor further by diving into the technical specification or contacting us to learn more.
Included in the following kits

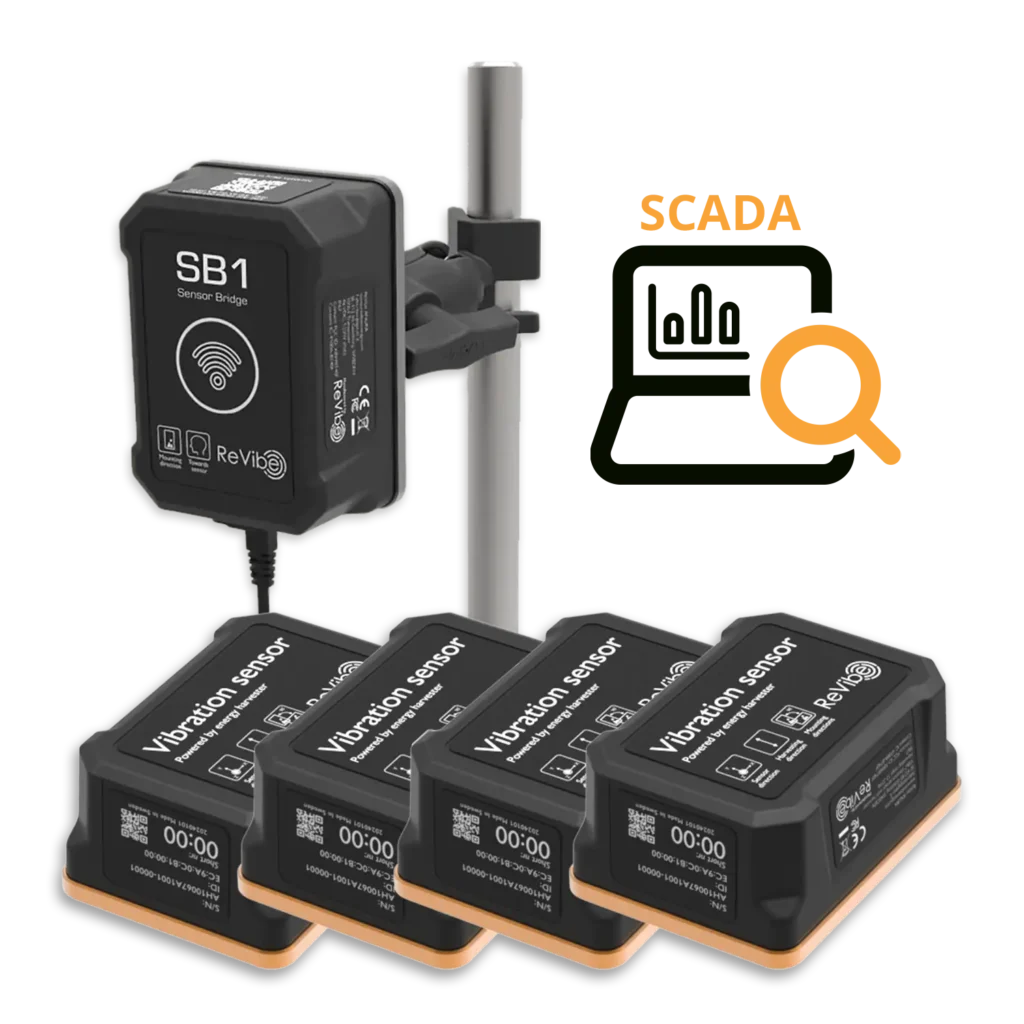

PM Industrial Ethernet Kit
SCADA-ready transceiver with Modbus TCP/IP integration.
Solutions for efficient monitoring
The VS1 sensor is a key component in our permanent monitoring solutions. Get to know our permanent monitoring solutions further.
