The easiest way to evaluate vibration energy harvesting

Evaluate how vibrations can power an entire sensor system

Highlighted features

Power through vibrations

Turning vibrations
into electricity

Storing excess energy in
a capacitor during operation

Bluetooth connectivity

Continuously communicating sensor measurements via BLE

Smartphone app available
to monitor sensor values

Performance evaluation

Monitor AC and DC output
from the harvester module

Measure output at different
vibrations levels

We are immensely proud of this new and improved line of evaluation kits. We have focused on making things as easy as possible for you as the user and have created an autonomous unit where you can evaluate: 1) harvested energy (AC and DC), 2) the harvesters ability to power a sensor node, and 3) evaluate the performance via a mobile app
Andreas Vikerfors
Head of Product Development

Technical specifications:

State-of-the-art
vibration energy harvesters

Highly efficient DC/DC power management control

Integrated sensors and wireless communication​

Datasheet

Please note that this datasheet concerns the modelC. It does however display the complete functionality of all three products.
New datasheets for modelD and modelQ will be introduced in September once the units are ready for delivery.

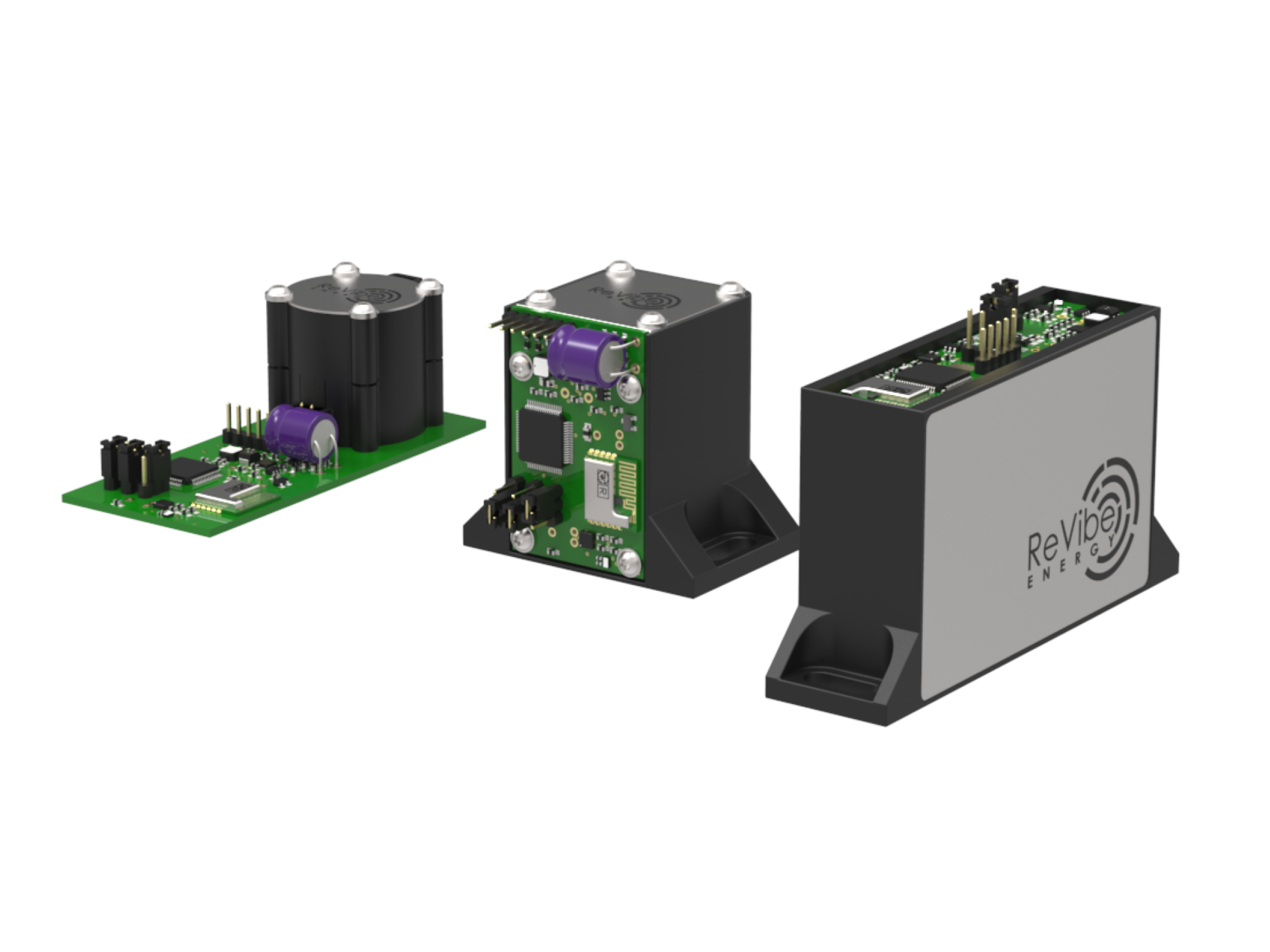

Pricing information

modelC

evaluation kit
395
  • Weight: 170g
  • 100 x 25 x 53 mm
  • Possible frequency setting: 10 - 30 Hz
  • Power output: 0.5 – 150 mW (AC)
  • Mounting via screws/studs
Available now

modelD

evaluation kit
395
  • Weight: 140g
  • 53 x 43 x 50 mm
  • Possible frequency setting: 35 - 100 Hz
  • Power output: 0.5 – 200 mW (AC)
  • Mounting via screws/studs​
Available in October

modelQ

evaluation kit
395
  • Weight: 50g
  • 37 x 28.5 x 27.5 mm
  • Possible frequency setting: 35 - 100 Hz
  • Power output: 0.5 – 150 mW (AC)
  • Mount directly on PCB
Available in October

Ready to start harvesting vibrations?

Fantastic!

the modelC is available for immediate delivery.
modelD and modelQ will be available for October delivery.

modelC

  • Please enter a number from 1 to 50.
  • NOTE: Please choose multiple frequencies if you would like to receive multiple evaluation kits

modelD & modelQ

    You can select multiple products
