TR1 Transceiver
A compact and durable transceiver designed for efficient wireless communication and data handling in industrial environments.
Reliable industrial communication
-
Seamless multi-sensor connectivity
Supports up to eight sensors per transceiver, ensuring scalable monitoring. -
Rugged & industrial-ready
Hard anodized aluminum and PA6 casing, IP65-rated.
-
Precision time synchronization
Delivers highly accurate, sub-5µs synchronization for reliable multi-sensor data analysis. -
Simplified power & data handling
Powered via PoE, combining data and power in a single Ethernet cable for easy installation.
Product description

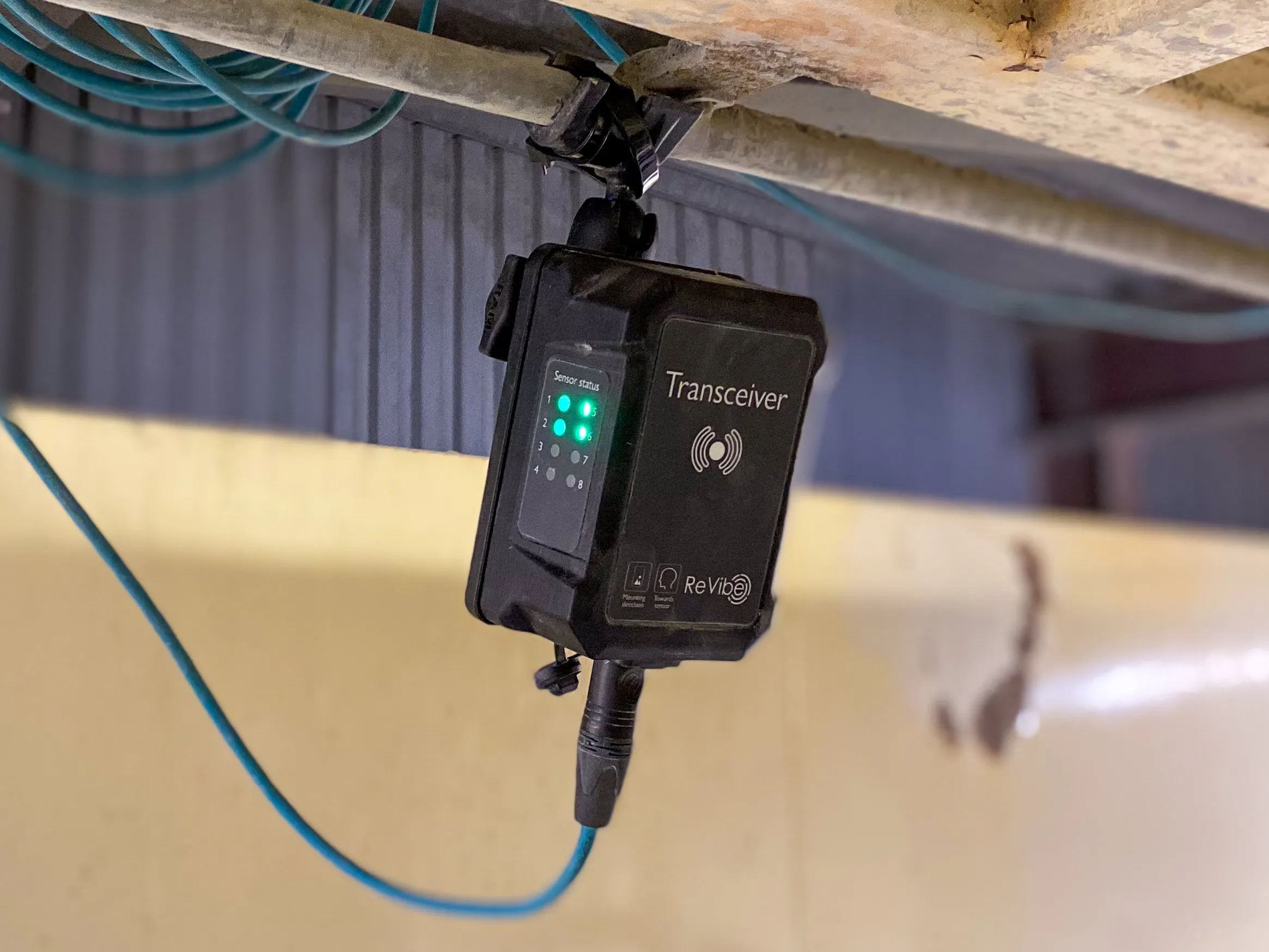

The TR1 Transceiver is the essential link between Anura sensors (VS1 & VS10-C) and a central gateway, ensuring seamless data transmission with exceptional wireless coverage around industrial machinery. Supporting up to eight sensors, it enables scalable, high-precision monitoring.
Designed for harsh environments, the TR1 features a rugged, IP65-rated aluminum and PA6 enclosure and operates reliably in temperatures from -40°C to +80°C. Its advanced time synchronization (<5µs offset) guarantees precise multi-sensor data alignment.
Wireless communication with the sensors runs on 2.4 GHz with high-speed 1 Mbps transmission, while Power over Ethernet (PoE) ensures a streamlined, single-cable setup for both data and power.
With compact design, multiple mounting options, and optimized antenna performance, the TR1 delivers unmatched reliability in industrial monitoring applications.
Technical specification
Power Supply
PoE, IEEE 802af
Connections
Up to 8 sensors
Interface
Neutrik RJ45 Ethernet
Time Synch Offset
<5µs
Enclosure Material
Hard-anodized aluminum, PA6
Ingress Protection
IP65
Dimensions (HxWxD)
140 x 98 x 60 mm
Operating Temperature
-40 °C to +80 °C
Wireless Communication
2.4 GHz
Get started today
Want to take your monitoring to the next level? Get to know the TR1 Transceiver further by diving into the technical specification or contacting us to learn more.
Included in the following kits
RK14 Remote Monitoring Kit
A remote monitoring kit with 4 VS1 sensors, a TR1 transceiver and Base Hub Gateway for cloud-enabled vibration monitoring.
RK24 Remote Monitoring Kit
A remote monitoring kit with 4 VS1 sensors and a TR1 transceiver for integration with customer-provided gateway infrastructure.
Get to know ANURA better
We’ve gathered some of the most common questions and answers here. Learn more in our Learning Center.
Are the sensors suitable for harsh environments?
Yes. The sensor families as rugged and suitable for harsh industrial environments, with IP67 protection for the VS1 and IP65 protection for the VS10-C, TR1 and SB1, with operating temperatures down to -40 °C.
Learn moreCan ANURA integrate with cloud platforms?
Yes. ANURA Remote uses an open data format and is described as easy to integrate with digital platforms, with ready-to-use integrations for ROSTA Digital and Simpro Sentinel.
Learn moreWhat is ReVibe ANURA?
ReVibe ANURA is a wireless vibration monitoring solution for vibrating screens, feeders, and similar equipment. It uses self-powered or rechargeable sensors to deliver real-time data for diagnostics, monitoring, and maintenance decisions.
Learn moreCan ANURA be used on vibrating screens?
Yes. Vibrating screens are the primary use case for ANURA, both for permanent monitoring and field-based diagnostics. The solution is specifically designed to handle the dynamics of vibratory equipment and can also be used on feeders and similar assets.
Learn moreCan ANURA help improve process performance?
Yes. ANURA is not only designed for reliability and maintenance, but also for improving overall process performance. By providing detailed vibration data, it enables better visibility into material flow, screen efficiency, and how equipment operates under different conditions – helping you make more informed, data-driven decisions.
Learn moreCan ANURA help reduce unplanned downtime?
Yes. ANURA helps detect potential issues at an early stage, making it easier to plan maintenance and reduce the risk of unexpected failures. By improving visibility into equipment condition, it supports a more proactive approach to maintenance – helping minimize downtime and avoid costly disruptions.
Learn more
